Máquina formadora de perchas mecánicas

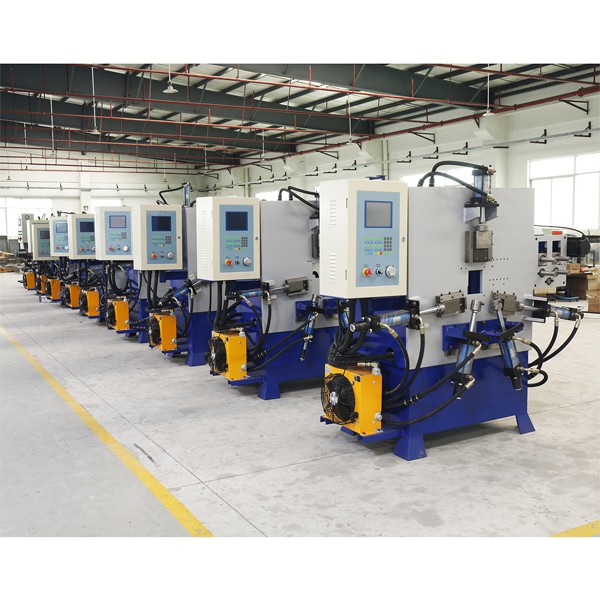

Fully automatic hanger making machine has a fast production capacity, can reach 30-60 pieces per minute. Smooth operation, high yield, less defective. Controlled by frequency converter, easy to adjust and form hanger. It's feeding adopted in servo motor control , which is characterized by feeding at high precision. At the meantime, it can produce butterfly hanger with welding function all in line. We have several model for options, common hanger, butter-fly hanger , PVC coated hanger .We can make machine according to customer's special requirement

Envíeconsulta

Chatee ahora

Introducción del producto

Tenemos varios modelos para opciones, colgador común, colgador de mariposa -, colgador recubierto de PVC.

We can make machine according to customer's special requirement

Technical Parameter:

Modelo 型号	GT-CH5	GT-CH-5P	GT-CH-5W	GT-CH-5HW
Wire size 线径	1,5 mm-4,5 mm	1,5 mm-4,5 mm	1,5 mm-4,5 mm	1,5 mm-4,5 mm
Function衣架功能	普通款Common	包胶成型款 revestimiento de PVC	客供衣架钩焊接成型接款welding	含电焊墩头成型一体 extremo de soldadura y remache
Feeding length长度	500 mm (11-19 pulgadas)	500 mm (11-19 pulgadas)	500 mm (11-19 pulgadas)	500 mm (11-19 pulgadas)
Production rate 速度（个/分钟）	50-60 piezas por minuto	30-40 piezas por minuto	30 piezas por minuto	30 piezas por minuto
Motor power电机功率	2.2kw	2.2kw	2.2kw	3.7kw
Welding machine氩弧焊机标配	No	No	sí	sí
Machine size 尺寸	250146158cm	250146158cm	270146158cm	360153168cm
Weight 重量	1200,0 kg	1200,0 kg	1400,0 kg	1400,0 kg
